IDE PC Card Reader (Model IIC) for Compact
Flash Cards & Microdrives



PSI Model: IIC
(beige color with a flat 40 pin cable)

Product Description

CF to 40-pin IDE card drive
40-pin IDE 3.5" card drive with 1 front Compact Flash type II slot

Note: This model can also be used on Akai MPC2000XL drum machines or the like that has an IDE expansion port. ( For MPC2000XL, please use OS 1.20 and up. Check it out at http://www.akaipro.com/supportos.php
Check your system. You may need a 44pin-to-40pin converter.

Features

  • Standard 3.5" drive form-factor

  • 1 front Compact Flash type II slot

  • ATA to standard 40-pin IDE interface..

  • 40-pin IDE connector and a 4-pin power connector.  Optional 44pin-to-40pin cable is not included.

  • For model IIC: Hot swappable & bootable.  Hot swappable under DOS, Windows 98/ME/2000/XP (Needs software. Please check note below.). No driver is needed for Linux.

  • This model can be used on other non-Windows-based systems, such as an Akai MPC2000XL, but it's NOT hot-swappable!

  • Supports up to UDMA-4 mode

  • 1 year warranty

  • RoHS compliant

Specifications:

Host Interface 40-pin IDE connector and a 4-pin power connector
Form-factor
                                       Dimension
                                          Weight
Standard 3.5" drive mounted in the front of PC casing
109.4mm(L)*101.6mm(W)*25.4mm(H)

G.W.:270g
Slot Capabilities 1 front slot in CompactFlash type II
Master/Slave Setting By jumper
Supported Card Type CompactFlash type I/II and MicroDrive
Power Consumption 5V/70mA typ.
Electrical Characteristics
    Operating Temperature
    Non-Operating Temperature
    Relative Humidity

0░C ~70░C
-20░C ~80░C
Max 90%
Hot Swap Function Yes and software supports DOS, Windows 98/ME/2000/XP and up
No driver needed for Linux
Bootable Function Yes and no driver needed
Data Access PIO mode and DMA mode
(up to UDMA-4 mode)
Supported OS Any OS workable per IDE interface

  Note:
Model IIC/ R312XX00I50XBH03R reader is not natively hot-swappable, and it works hot-swappable with software drivers which is included. The drivers support Windows 98/2000/XP for its hot-swapping.  This reader can also support DOS 6.22 OS by executing the following software @: http://www.apro-tw.com/Software/DOS HOT SWAP.zip

This model can be used on other non-Windows-based systems, such as an Akai MPC2000XL, but it's NOT hot-swappable!

Please click here for User's manual .

1)  How to connect the cables?

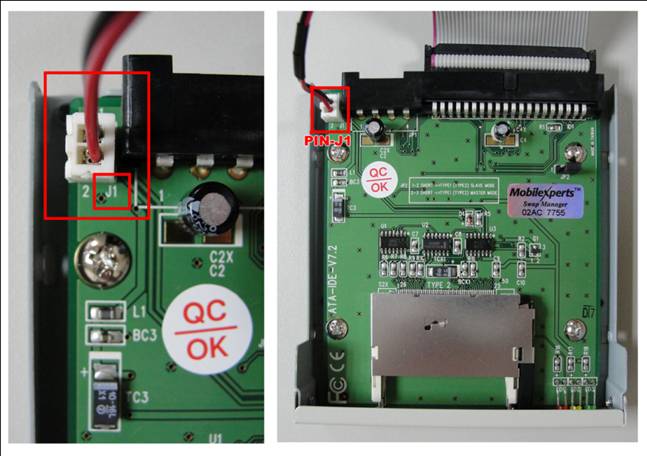

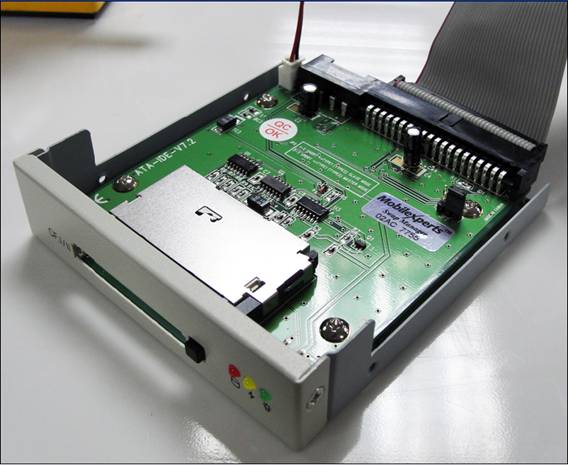

With  attached ribbon cable, please plug the 2-pin connector into the pin - J1 on the card reader and plug in the 40-pin flat cable connector (see the pictures below).

Or you can just use the standard ATA-100/133 IDE cable line.







Note: pin-J1 function

It is just the circuit design for delaying the reset signal so that if there are some compatibility issues between the IDE card reader and your built-in IDE bus CD/DVD ROM on your system,  you have to use this IDE 2-pin cable.  Plugging in the 2-pin connector to the pin - J1 on the card reader will solve the issue.

 If there is no any compatibility problem, please just use the standard ATA-100/133 IDE cable line and ignore the 2-pin connector.



2)  Where does the power come from?

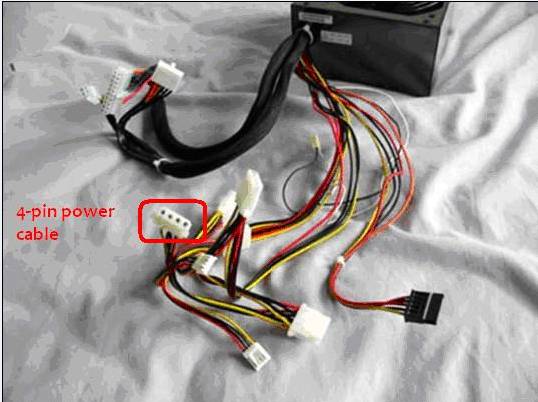

The 5V power comes from the existing power supply on your system.








PRICE

Please click here for the updated price.


WARRANTY & SUPPORT

  • 1 year limited warranty

  • Tech Support from PSI and the manufacturer


TO ORDER OR INQUIRE

TO ORDER OR INQUIRE.  Please click here to place an online order or send e-mail inquiry to sales@psism.com or call 1(301) 572-2168. We accept Visa, MasterCard, Discover and American Express as well as government and university POs.  International orders may be conditionally accepted. Please click here to order or view our ordering information page.
