Industrial SLC Solid-State PCMCIA ATA Flash Cards for Mission-Critical Applications


Why do you need industrial-grade memory cards instead of their cheaper consumer-grade MLC counterparts?

Industrial-grade cards are made to endure severe operating conditions such as high impact, continuous vibration, low  and/or high operating temperature. These cards are durable and can last intensive reads/writes. Certain cards are even made to be moisture-resistant. Consumer-grade memory cards are not as durable. For most of the industrial applications which normally require intensive I/O cycles, the consumer-grade cards tend to fail prematurely. Please click and read here to find out the advantages of the SLC Flash ICs and the comparisons between SLC and MLC.
We only offer flash storage products that are High shock & vibration-resistant and meet military MIL-STD 810F
standards.

PSI supplies industrial PCMCIA ATA flash cards from the following vendors/manufacturers.

C1-Technology  PSI-APRO Smart Modular

For an overview of the nomenclature used in the NAND flash storages, please read here. (Courtesy of APRO Co., Ltd.). For other industrial data storage devices, please click here.

 If you need a read-writer for your existing ATA flash cards, you can use the following readers:

1. PCI-based internal PC card read-writer, model PCD-220CS.
2. PCIe-based Cardbus PC card and ExpressCard reader, model PCD-TP-EXP.
3. IDE-based PCMCIA ATA flash card read-writer; model  IICA
4.
ExpressCard to 16-bit/32-bit PCMCIA card Adapter: Part #: PCMCIA-EXP3

5.  USB 2.0/3.0 external PCMCIA ATA and SD card read-writer, model UATA-SD,
6  USB 2.0 external PCMCIA ATA and SRAM card read-writer, model OMNIDrive USB Pro, and
7. USB 2.0 internal PCMCIA ATA card read-writer, model PCD-62U.

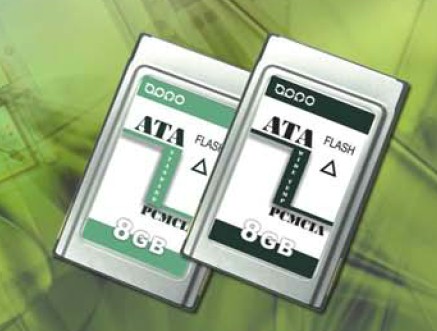

PSI-APRO SLC Industrial-Grade PCMCIA ATA Flash Cards:


APRO manufactures Industrial ATA cards for wide operating temperature range (-40 ~ +85 deg C) and commercial temperature range (0 ~ +70 deg C).
Operation Tolerance:  Vibration: 15G peak-to-peak; Shock: 1000G. Altitude: 70,000 ft. Meets MIL-STD 810F
standards..

The Industrial Rugged PCMCIA ATA Cards listed below can have many different versions:  with the following different (-UF/-UA/-PF/-PR/-PA/-AF/-AR/-AA) suffix. The -AA version cards are most versatile and hence recommended since they can automatically detect and switch to fixed disk or removable disk mode. It can also automatically detect and switch to PIO- or UDMA- data modes. If your applications call for a particular mode, please let us know.


APRO Wide-Temperature
(-40 ~ +85 deg C) Industrial ATA Flash Cards:
Note:
1. These APRO ATA flash cards  are made-to-order only and there is a 2 -3 weeks lead time.
2. Special orders of non-inventory parts are made-to-order and they are non-returnable and non-exchangeable so make sure you have the right part or pre-approve the samples before quantity ordering. Defective card will be covered under warranty.
3.
Conformal coating is available upon request with 15% extra charge.
4. Cards below are with standard plastic frame. Rugged metal-frame  (WR-) cards are also available for $8 more each.
5. APRO Part number Prefix Decoder & cost differences.

 WP-: Wide-teperature, Plastic frame,     SP-: Commercial-teperature, Plastic frame
 WR-: Wide-temperature, Rugged Metal casing, +$8  SR-: Commercial-temperature, Rugged Metal casing

PSI/APRO Hermit-A Series Industrial-Grade PCMCIA ATA  Flash Cards:
 Wide Temperature
( -40C ~ 85C), Meets MIL-STD 810F standards. 5 year warranty, RoHS.
Operation Tolerance:  Vibration: 15G peak-to-peak; Shock: 1500G. Altitude: 70,000 ft.
-AA cards in PIO & Fixed Disk mode are default.
Other versions with (-UF/-UA/-PF/-PR/-PA/-AF/-AR/-AA) suffix options are available.

You may click here to access Hermit-A series cards' detailed data sheet.

Part # Part Description Price
WPA016MH-AITI-PF Hermit series 16MB  ATA Card, PIO-Mode, Fixed Disk

$37

WPA032MH-AITI-PF Hermit series 32MB  ATA Card, PIO-Mode, Fixed Disk

$37

WPA064MH-AITI-PF Hermit series 64MB  ATA Card, PIO-Mode, Fixed Disk

$37

WPA128MH-AITI-PF Hermit series 128MB  ATA Card, PIO-Mode, Fixed Disk,  in stock

$38

WPA256MH-AITI-PF Hermit series 256MB  ATA Card, PIO-Mode, Fixed Disk

$39

WPA512MH-AITI-PF Hermit series 512MB  ATA Card, PIO-Mode, Fixed Diskin stock

$42

WPA001GH-AITI-PF*   Hermit series 1GB ATA Card, PIO-Mode, Fixed Disk in stock

$48

WPA002GH-AIT-AA  Hermit series 2GB ATA Card, PIO-Mode, Fixed Disk

$60

WPA004GH-AITI-AA*  Hermit series 4GB ATA Card, PIO-Mode, Fixed Disk

$90

WPA008GH-AITI-AA Hermit series 8GB  ATA Card, PIO-Mode, Fixed Disk

$139

WPA016GH-AITI-AA*   Hermit series 16GB ATA Card, PIO-Mode & UDMA modes + Auto detect Fixed & Removable disk modes.

$329

PSI/APRO Hercules-N Series Industrial-Grade PCMCIA ATA  Flash Cards ith S.M.A.R.T.:
 Wide Temperature
( -40C ~ 85C), Meets MIL-STD 810F standards. 5 year warranty, RoHS.
Operation Tolerance:  Vibration: 15G peak-to-peak; Shock: 1500G. Altitude: 70,000 ft.
Data transfer mode supports PIO 0~6, MWDMA 0~4, UDMA 0~7

-AA cards in PIO & Fixed Disk mode are default.

Part # Part Description Price
WPAFC016GM-NITI-AA*  Hercules-N series 16GB ATA Card, PIO-Mode & UDMA modes + Auto detect Fixed & Removable disk modes.

$229

WPAFC032GM-NITI-AA*   Hercules-N series 32GB ATA Card, PIO-Mode & UDMA modes + Auto detect Fixed & Removable disk modes.

$439

WPAFC064GM-NITI-AA*  Hercules-N series 64GB ATA Card, PIO-Mode & UDMA modes + Auto detect Fixed & Removable disk modes.

$749



 *   Note: Hermit & Hercules-series cards above can have many different versions: with the following different (-UF/-UA/-PF/-PR/-PA/-AF/-AR/-AA) suffix options. The -AA version cards are most versatile and are hence recommended for newer motherboards since they can automatically detect and switch to fixed disk or removable disk mode. It can also automatically detect and switch to PIO- or UDMA- data modes. If your applications call for a particular mode, please check the following suffix decoder.

-UF : UDMA & Fixed Disk Mode -UR : UDMA & Removable Disk -UA : UDMA & Auto Detect
-PF : PIO & Fixed Disk Mode -PR : PIO & Removable Disk -PA : PIO & Auto Detect
-AF: Auto PIO or UDMA & Fixed Disk Mode -AR : Auto PIO or UDMA & Removable Disk -AA :  Auto PIO or UDMA & Auto Fixed or Removable Disk


APRO Commercial Temperature
(0 ~ +70 deg C) Industrial ATA Flash Cards:
Note:
1. These are the more economical commercial-temperature (0 ~ 70 deg F) counterparts of the above wide-temperature  ATA flash cards. All are made-to-order only. There is a 2 -3 weeks lead time.
2. Special orders of non-inventory parts are made-to-order and they are  non-returnable and non-exchangeable, so, make sure you have the right part or pre-approve the samples before quantity ordering. Defective card will be covered under warranty.
3.
Conformal coating is available upon request with 15% extra charge.
4. Cards below are with standard plastic frame. Rugged metal-frame cards are also available for $8 more each.
5. APRO Part number Prefix Decoder & cost difference

 WP-: Wide-teperature, Plastic frame  SP-: Commercial-temperature, Plastic frame
 WR-: Wide-temperature, Rugged Metal casing, +$8  SR-: Commercial-temperature, Rugged Metal casing,

PSI/APRO Hermit-A  Series Industrial-Grade PCMCIA ATA Flash Cards
 Commercial Temperature
( 0C ~ 70C) RoHS, 3 year warranty.
Operation Tolerance:  Vibration: 15G peak-to-peak; Shock: 1000G. Altitude: 70,000 ft.
-AA cards offer Auto detection for PIO & UDMA + auto detection of Fixed Disk and Removable Disk modes.
Other versions with (-UF/-UA/-PF/-PR/-PA/-AF/-AR/-AA) suffix options are available.

Part # Part Description Price
SPA016MH-ACTC-AA 16 MB ATA Card, Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes.

$35

SPA032MH-ACTC-AA 32 MB ATA Card, Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes.

$34

SPA064MH-ACTC-AA  64 MB ATA Card, Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes.

$34

SPA128MH-ACTC-AA  128 MB ATA Card, Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes.

$35

SPA256MH-ACTC-AA  256 MB ATA Card, Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes.

$36

SPA512MH-ACTC-AA  512 MB ATA Card, Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes.

$37

SPA001GH-ACTC-AA  1GB ATA Card, Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes.

$46

SPA002GH-ACTC-AA 2GB  ATA Card, Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes.

$55

SPA004GH-ACTC-AA 4GB  ATA Card, Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes.

$85

SPA008GH-ACTC-AA 8GB  ATA Card, Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes.

$130

SPA016GH-ACTC-AA 16GB ATA Card, Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes.

$289

PSI/APRO Hercules-N Series Industrial-Grade PCMCIA ATA  Flash Cards with S.M.A.R.T:
 Commercial Temperature
( 0C ~ 70C), Meets MIL-STD 810F standards. 3 year warranty, RoHS.
Operation Tolerance:  Vibration: 15G peak-to-peak; Shock: 1500G. Altitude: 70,000 ft.
Data transfer mode supports PIO 0~6, MWDMA 0~4, UDMA 0~7
-AA cards in PIO & Fixed Disk mode are default. (See note below.)

Part # Part Description Price
SPAFC016GM-NCTC-AA*   Hercules-N series 16GB ATA Card, PIO-Mode & UDMA modes + Auto detect Fixed & Removable disk modes.

$229

SPAFC032GM-NCTC-AA*   Hercules-N series 32GB ATA Card, PIO-Mode & UDMA modes + Auto detect Fixed & Removable disk modes.

$359

SPAFC064GM-NCTC-AA*   Hercules-N series 64GB ATA Card, PIO-Mode & UDMA modes + Auto detect Fixed & Removable disk modes.

$649

 *   Note: Hermit & Hercules-series cards above can have many different versions: with the following different (-UF/-UR/-UA/-PF/-PR/-PA/-AF/-AR/-AA) suffix options. The -AA version cards are most versatile and are hence recommended for newer motherboards since they can automatically detect and switch to fixed disk or removable disk mode. It can also automatically detect and switch to PIO- or UDMA- data modes. If your applications call for a particular mode, please check the following suffix decoder..

-UF : UDMA & Fixed Disk Mode -UR : UDMA & Removable Disk -UA : UDMA & Auto Detect
-PF : PIO & Fixed Disk Mode -PR : PIO & Removable Disk -PA : PIO & Auto Detect
-AF: Auto PIO or UDMA & Fixed Disk Mode -AR : Auto PIO or UDMA & Removable Disk -AA :  Auto PIO or UDMA & Auto Fixed or Removable Disk

C1-Tech Lynx-Series Industrial-Grade PCMCIA ATA Flash Cards:

C1-Technology has been a pioneer and leader in manufacturing industrial-grade flash memory cards and SSDs. These ATA flash cards are made-to-order only. There is a 2 -3 weeks lead time.  Special orders of non-inventory parts are non-returnable and non-exchangeable so make sure you have the right part or pre-approve the samples before quantity ordering. Defective card will be covered under warranty.

Please click here for detailed data sheet.

Features:

  • PC Card compliant

  • PCMCIA ATA / IDE interface

  • Performance: High transfer rate up to 35MB/s under UDMA 4 mode

  • Capacity: 128MB ~ 8GB

  • 3.3/5 Volt power supply, very low power consumption

  • ECC (Error Correcting Code) detection

  • MTBF: 3,000,000 power-on hours & 3,000,000 read-write cycles

  • Data Access: 1.2ms

  • PCMCIA ATA Flash cards are available in two types:
    - Commercial temperature range: 0
    ░C to +70░C
    - Wide temperature range: -40░C to +85░C

A.  Lynx-Series Industrial-Grade Commercial Temperature( 0C ~ 70C) PCMCIA ATA Flash Cards:

RoHS, 3 year warranty. Plastic housing.
Auto detection for PIO & UDMA + auto detection of Fixed Disk and Removable Disk modes.
Operation Tolerance:  Vibration: 20G peak-to-peak; Shock: 50G.

Please click here for detailed data sheet.

 Industrial-Grade Commercial Temperature ( 0C ~ 70C) Type II PCMCIA ATA Flash Cards:

RoHS, 3 year warranty. Plastic housing with write-protect switch
Part # Part Description Price
PCL100128MP-CAP 128MB  ATA Card Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes.  $35
PCL100256MP-CAP 256MB ATA Card, Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes.  $40
PCL100512MP-CAP 512MB  ATA Card,  Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes. $45
PCL100001GP-CAP 1GB  ATA Card  Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes.  $50
PCL100002GP-CAP 2GB  ATA Card, Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes.  $59
PCL100004GP-CAP 4GB ATA Card  Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes.  $80
PCL100008GP-CAP 8GB ATA Card Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes. $115


B.  Lynx-Series Industrial-Grade Wide-Temperature
( -40
C ~ 85C) PCMCIA ATA Flash Cards:

RoHS, 5 year warranty. Rugged metal housing.
Auto detection for PIO & UDMA + auto detection of Fixed Disk and Removable Disk modes.
Operation Tolerance:  Vibration: 20G peak-to-peak; Shock: 1500G.
Please click here for detailed data sheet.

Industrial-Grade Wide-Temperature ( -40C ~ 85C) PCMCIA ATA Flash Cards:

RoHS, 5 year warranty. Rugged metal housing.
Part # Part Description Price
PCL100128MM-HA 128MB  ATA Card,  Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes.  $39
PCL100256MM-HA 256MB ATA Card , Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes. $43
PCL100512MM-HA 512MB ATA Card,  Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes. $49
PCL100001GM-HA 1GB  ATA Card, Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes. $58
PCL100002GM-HA 2GB ATA Card  Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes. $69
PCL100004GM-HA 4GB ATA Card, Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes. $89
PCL100008GM-HA 8GB  ATA Card,  Auto detect PIO & UDMA modes + Auto detect Fixed & Removable disk modes. $125


WDC (formerly Silicon Systems)  Industrial Grade  ATA Flash Cards:
Note: Silicon Systems ATA flash cards are obsolete and no longer available, except the following cards.. You may use PSI-APRO or C-1 industrial-grade cards above instead.

Part Number Suffix Decoder:
The meaning of the -3xxx suffix of the following Silicon Systems part numbers:

-3005: supports "removable-disk" mode & DMA disabled. For detailed specifications, please click hereEOL
-3012: supports "fixed-disk" mode & DMA enabled. For detailed specifications, please click hereEOL
-3021: supports "fixed-disk" mode & DMA disabled. For detailed specifications, please click hereEOL
-3038: supports "removable-disk" mode & DMA enabled. For detailed specifications, please click hereEOL
-3500: with integrated PowerArmor and SiSmart technology. RoHS 6/6 Compliant Multi-word DMA enabled. Fixed in IDE Mode and Removable in PC card mode. Please click here for specifications. EOL
-3512: with integrated PowerArmor and SiSmart technology. RoHS 6/6 Compliant Multi-word DMA enabled. Fixed in IDE Mode. Removable in PC card mode. Please click here for specifications. EOL
-
3550: Secure with integrated PowerArmor and SiSmart technology. RoHS 5/6 Compliant Multi-word DMA enabled Fixed in IDE Mode, Removable in PC card mode. Please click here for specifications. EOL



Sandisk Brand Industrial Grade & Wide-Temperature ATA Flash Cards:

Sandisk industrial SDP3B-xxx-201-80 and SDP3BI-xxx-201-80 cards are no longer available. Please choose a compatible APRO card above.



For other industrial storage options, please click here.


WARRANTY & SUPPORT.  Tech support from manufacturer and PSI. 1 year warranty. For tech support and/or RMA, please go to http://www.psism.com/support.htm


TO ORDER OR INQUIRE.  Please click here to place an online order or send e-mail inquiry to sales@psism.com or call (301) 572-2168. We accept Visa, MasterCard, Discover and American Express as well as government and university POs.  International orders may be conditionally accepted. Please click here to order or view our ordering information page.

Note: All MLC & SLC flash SSDs are made-to-order, so, order is non-cancelable and non-returnable once confirmed. Customers are advised to purchase samples to test and approve before placing mass orders.. Products are covered by manufacturer's warranty.


New Products  |  PCMCIA Cards / Readers   |  Industrial / Rugged Memory Products   |  SRAM & Linear Flash   |
|   SATA & IDE Flash Drives
Industrial ATA & CF Cards   |   Embedded  Memory  Tronlink Products  |

Copyrightę 1995 ~ 2016
PSISM, LLC , dba PSI (formerly  Primary Simulation, Inc. )
2963 Mozart Drive, Silver Spring, MD 20904  U.S.A.
Tel:(301) 572-2168,  Fax: (301) 847-0739
10:00AM ~ 6:00PM U.S. Eastern Time
Email: sales@psism.com
