Industrial SLC CFast Card

CompactFlash form-factor with SATA Interface

Note: CFast is a new flash card standard using SATA interface. CFast card is not a CompactFlash card and does not fit a compact flash slot.



APRO SLC Industrial-Grade CFast Card     Industrial 1.8" SATA II to CFast Card Adapter



      Apro's HERMES-D Series Industrial CFast Card featuring  great portability and resistance against vibration. APRO Industrial CFast Card compliant to the CFast Specification 1.0 issued by CompactFlash Association (CFA), it breakthroughs the speed performance under traditional ATA/ATAPI specification. Integrating the CompactFlash card form factor and Serial ATA (SATA I & II) interface, the transfer speed is much higher than traditional CF Card while it keeps small form factor and rigid case as CF Card. The sequential read speed is 105.6MB/sec and sequential write speed is 100.8MB for Single Level Cell (SLC) solution. Even the Multi Level Cell (MLC) solution has higher transfer speed than the traditional CF card. The radical performance can widely meet customers' requirements, especially in embedded and industrial applications. Furthermore, APRO also provide Industrial 1.8" SATA II to CFast card Adapter to increase the application flexibility.

     SLC CFast Cards are suitable to handheld device embedded system, inventory recorder and particularly for serious environment monitor recorder system while APRO MLC CFast Card can be applied to high speed digital acquisition system and professional DSLR for quick or continuous capturing. Also, through APRO's Industrial 1.8" SATA II to CFast card adapter, APRO Industrial CFast Card can be high speed booting SSD to varieties of IPC motherboards and PC structure system.

Features:

  • RoHS compliant SLC(MLC)-NAND flash technology

  • Compliant CFast?Specification V1.0

  • 7-pin (data) +17-pin (power) CFast interface

  • CFast Type I form-factor

  • Supports SATA I/II (1.5/ 3.0Gbps) interface

  • Data transfer support UDMA-6 and backward compatible

  • Support BCH ECC 8bits per 512 bytes

  • Power supply support +3.3V ?/span> 5%

  • Vibration: 15G, Shock: 1500G; both Meet MIL-STD 810F standards

  • Optional for commercial temperature ( 0C~+ 70C ) or industrial wide-temperature ( -40C~+ 85?/font>C)

  • Capacity supports  4, 8, 16, 32 and 64 GB

Please click here for specifications!

Order Information:
Due to the EOL of Samsung SLC flash chips, all parts below are using Toshiba SLC chips now. The part # suffixes are changed from -JDCSC and JDISI to -JFCTC and JFITI, respectively. Product specifications remain the same.

APRO Hermes-D Series Industrial SLC CFast Flash Card, 0C ~ +70C

Product Grade Casing Form Factor Series Capacity APRO Part Number

UNIT PRICE

CFast Std. Temp. Plastic Type I HERMES-F 4GB SCFA004G-JFCTC $79
CFast Std. Temp. Plastic Type I HERMES-F 8GB SCFA008G-JFCTC $122
CFast Std. Temp. Plastic Type I HERMES-F 16GB SCFA016G-JFCTC $199
CFast Std. Temp. Plastic Type I HERMES-F 32GB SCFA032G-JFCTC  $369
CFast Std. Temp. Plastic Type I HERMES-F 64GB SCFA064G-JFCTC  $679

APRO Hermes-D Series Industrial SLC CFast Flash Card,  -40C ~ +85C

Product Grade Casing Form Factor Series Capacity APRO Part Number

UNIT PRICE

CFast Wide Temp. Plastic Type I HERMES-F 4GB WCFA004G-JFITI $85
CFast Wide Temp. Plastic Type I HERMES-F 8GB WCFA008G-JFITI $135
CFast Wide Temp. Plastic Type I HERMES-F 16GB WCFA016G-JFITI $235
CFast  Wide Temp. Plastic Type I HERMES-F 32GB WCFA032G-JFITI $420
CFast  Wide Temp. Plastic Type I HERMES-F 64GB WCFA064G-JFITI $779

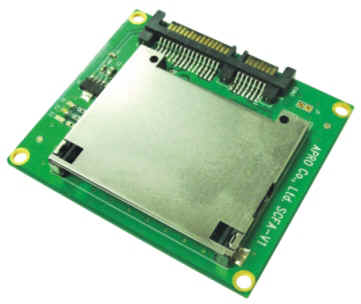

APRO Industrial 1.8" SATA II to CFast Card Adapter

Adapter Industrial 1.8" SATA II to CFast Card Adapter AD-CA128SATA200AR $45
Adapter For IDE-CF, ExpressCard, SATA-CF, PCMCIA, etc. adapters,  please click here



To inquire about APRO's MLC CFast Cards and/or it's industrial 1.8" SATA II to CFast card adapters, please send your e-mail to sales@psism.com.

For cheaper MLC CFast cards, please go to here. For other industrial-grade flash storage devices, please click here.



WARRANTY & SUPPORT.  Tech support from manufacturer and PSI. For tech support and/or RMA, please go to http://www.psism.com/support.htm


TO ORDER OR INQUIRE.  Please click here to place an online order or send e-mail inquiry to sales@psism.com or call (301) 572-2168. We accept Visa, MasterCard, Discover and American Express as well as government and university POs.  International orders may be conditionally accepted. Please click here to order or view our ordering information page.

Note: All MLC & SLC flash SSDs are made-to-order, so, order is non-cancelable and non-returnable once confirmed. Customers are advised to purchase samples to test and approve before placing mass orders.
