Industrial-Grade Bootable CF-to-IDE Adapters

A great way to add Bootable CF slots to your PC, IPC, SBC or Embedded System
No driver needed. Ideal for Embedded systems including Linux.
Appears as normal disk drive to the system. Can be used as a boot device.
Support up to PIO-4 & UDMA-4 modes; No CF card memory size limits.
Operating Temp: -40 ~ 85 deg C;  Storage Temp:  -55 ~ +95 deg C.
Shock: 1500G; Vibration: 15G. Power: 5V
Click here for specifications


We also offer the new, fast and bootable SATA-CF adapters/readers. Please go to here for more information.


Single-Slot CF-to-IDE Adapters: Click here for specifications

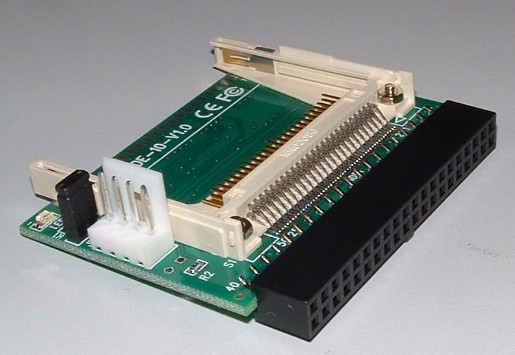

2.5" CF-IDE Adapters
CF to 40-pin and/or 44-pin IDE Adapter, supports 1 CF slot.
Click picture to enlarge.
Click here for specifications.


ADCF-5IDE4044
Check price here.
Part Numbers :
ADCF-5IDE40 => 1-Slot Type II CF to Male 40-pin IDE Adapter
ADCF-5IDE44 => 1-Slot Type II CF to Male 44-pin IDE Adapter
ADCF-5IDE4044
 => 1-Slot Type II CF to both Male 40-pin and 44-pin IDE Adapter

Features:
- RoHS 2.5” form factor
- CF to IDE interface. May require a 40 or 44-pin cable. (not included)
- 1 slot supports Type I/II CF Card and Microdrive
- Male 44-pin and/or 40-pin IDE
connector
- Power Voltage 5V; 40-pin version with 4-pin power
connector on-board
- LED indicator
- Can be mounted in 3.5” drive bay with optional mounting kit
- Dimension: 75mm x 70 mm (2.95" x 2.76")
- G.W.: 50g ( 1.76 oz)
- Due to IDE restrictions, the CF card is not hot-swappable.
- Jumper: Master (pins 1/2 shorted); Slave (pins 2/3 shorted)
Rear-Mount CF-IDE Adapters
Support 1 CF slot, accessing from the rear of PC. Click picture to enlarge.


ADCF-RIDE40
Check price here.

Part Numbers :
ADCF-RIDE40 => 1-Slot Type II CF to Male 40-pin IDE Adapter
ADCF-RIDE44 => 1-Slot Type II CF to Male 44-pin IDE Adapter
ADCF-RIDE4044 => 1-Slot Type II CF to both Male 40-pin and 44-pin IDE Adapter


Features:
-
Same 2.5” form factor as the model above but with rear bracket. Insert CF card from the back of PC. RoHS-compliant.
- CF to IDE interface
. May require a 40 or 44-pin cable. (not included)
- 1 slot supports Type I/II CF Card and Microdrive
-
Male 44-pin and/or 40-pin IDE connector
- Power Voltage 5V; 40-pin version
with 4-pin power connector on-board
- Accessing CF Card from the rear of PC
- Dimension: 75 mm x 70 mm (2.95" x 2.76")
- G. W. : 60g ( 2.12 oz)
- Due to IDE restrictions, the CF card is not hot-swappable.
- Jumper: Master (pins 1/2 shorted); Slave (pins 2/3 shorted)

Board-Mount Vertical CF-IDE Adapters
Directly plugs in the IDE socket; supports 1 CF slot.  Click picture to enlarge.

ADCF-PIDE40
Check price here.
Part Numbers :
ADCF-PIDE40 => 1-Slot Type II CF to Female 40-pin IDE Adapter NA
ADCF-PIDE44
  => 1-Slot Type II CF to Female 44-pin IDE Adapter

Features:
- CF to IDE interface
- Vertically plug into IDE socket
- 1 slot supports Type I/II CF Card and Microdrive
- Female 44-pin or 40-pin IDE
connector
- Power Voltage: 5V. 40-pin version with 4-pin power
connector on-board
- Dimension: 55mm x 48mm (2.17" x 1.89")
- G. W. : 25g ( 0.88 oz)
- Due to IDE restrictions, the CF card is not hot-swappable.
- Jumper: Master (pins 1/2 shorted); Slave (not shorted)

Dual-Slot  CF-to-IDE Adapters: Click here for specifications
2-Slot 2.5" CF-IDE Adapters
CF to 40-pin and/or 44-pin IDE Adapter, supports 2 CF slots.



ADCF-5IDE4044-2
Check price here.
Part Numbers :
ADCF-5IDE40-2 => 2-Slot Type II CF to Male 40-pin IDE Adapter
ADCF-5IDE44-2 => 2-Slot Type II CF to Male 44-pin IDE Adapter
ADCF-5IDE4044-2
 => 2-Slot Type II CF to both Male 40-pin and 44-pin IDE Adapter

Features:
- RoHS 2.5” form factor CF to IDE interface
- 2 slots,  supporting Type I/II CF Card and Microdrive
- Male 44-pin and/or 40-pin IDE
connector. May require a 40 or 44-pin cable, (not included).
- Power Voltage 5V. 40-pin version with 4-pin power
connector on-board
- LED indicator
- Dimension: 75mm x 70mm (2.95" x 2.76") x10mm
- G. W. : 60g ( 2.12 oz)
- Due to IDE restrictions, the CF card is not hot-swappable.

Alt. 2-Slot  2.5" CF-IDE Adapters
2.5"; supports 2 CF slots.

ADCF-VIDE40-2
Check price here.
Part Numbers :
ADCF-VIDE40-2 => 2-Slot Type II CF to Male 40-pin IDE Adapter

Features:
- Similar to the 2-slot models above but with different connector orientation.
- RoHS CF to IDE interface, 2.5" form factor
- Vertically plug into IDE socket. Requires a 40-pin cable. (not included)
- 2 slots, supporting Type I/II CF Card and Microdrive
- Female 40-pin IDE
connector with 4-pin power connector on-board
- Power Voltage: 5V
- Dimension: 75mm x 70mm (2.95" x 2.76") x 10mm
- G. W. : 60g ( 2.12 oz)
- Due to IDE restrictions, the CF card is not hot-swappable.

Part Number Decoder:

Part #: ADCF-(5,P/V,R, H)IDEXXXX-Y

AD => Adapter
CF => CF interface
5 = 2.5" form factor
R = Rear Mount
P or V = Plain form (Vertical Type)
H= H-type form (Horizontal Type)
IDE = IDE interface
XXXX = 40 => 40-pin IDE; 44 => 44-pin IDE;  4044 => Support both 40-pin and 44-pin IDE interfaces
Y = Blank or 1 => single CF slot;  2 => dual slots.


PRICE.
  Volume discount applies.

Single-Slot CF-to-IDE Adapters for Industrial/embedded Pcs
Add a bootable CF port  through the IDE port on your PC, IPC, SBC or Embedded system..
PSI 2.5" CF to dual 44-pin + 40-pin IDE adapter, supports 1 type II CF slot. (P/N: ADCF-5IDE4044)   $44
PSI 2.5" CF to 44-pin IDE adapter, supports 1 type II CF slot. (P/N: ADCF-5IDE44)   special order
PSI 2.5" CF to 40-pin IDE adapter, supports 1 type II CF slot. (P/N: ADCF-5IDE40)   special order
2.5" to 3.5" Bracket Adapter with PCB adapter (Small IDE 44 to Large IDE 40), convert a 2.5"  drive into a desktop's 3.5" form factor. Model Bracket25-4044 $10

PSI Vertical Board-Mount CF to 40-pin IDE adapter, supports 1 type II CF slot. Directly plug in the 40-pin IDE socket. (P/N: ADCF-PIDE40 NA
PSI Vertical Board-Mount CF to 44-pin IDE adapter, supports 1 type II CF slot. Directly plug in the 44-pin IDE socket. (P/N: ADCF-PIDE44)   $40

PSI Rear-Mount CF to dual 40-pin + 44-pin IDE adapter, supports 1 type II CF slot accessing from the rear of PC. RoHS-compliant. (P/N: ADCF-RIDE4044  $46
PSI Rear-Mount CF to 40-pin IDE adapter, supports 1 type II CF slot accessing from the rear of PC (P/N: ADCF-RIDE40 special order
PSI Rear-Mount CF to 44-pin IDE adapter, supports 1 type II CF slot accessing from the rear of PC (P/N: ADCF-RIDE44)   special order

TWO-Slot CF-to-IDE Adapters for Industrial/embedded Pcs
Add bootable CF ports  through the IDE port on your PC, IPC, SBC or Embedded system..
PSI 2-slot 2.5" CF to dual 44-pin + 40-pin IDE adapter, supports 2 type II CF slots. (P/N: ADCF-5IDE4044-2)   $50
PSI  2-slot 2.5" CF to 44-pin IDE adapter, supports 2 type II CF slots. (P/N: ADCF-5IDE44-2)   special order
PSI  2-slot 2.5" CF to 40-pin IDE adapter, supports 2 type II CF slots. (P/N: ADCF-5IDE40-2)   special order

PSI 2-slot CF to male 40-pin IDE adapter, supports 2 type II CF slots.  (P/N: ADCF-VIDE40-2
Note: with different connector orientation from the above 3 models.
$48
2.5" to 3.5" Bracket Adapter with PCB adapter (Small IDE 44 to Large IDE 40), convert a 2.5"  drive into a desktop's 3.5" form factor. Model Bracket25-4044 $10

SATA-to-CF Card Adapters
(These readers can only read the intended memory cards!
click here

IDE Internal PC Card Readers / Writers
(These readers can only read the intended memory cards!
PSI front-slot internal IDE reader/writer (model IIC) with a single bootable slot for: type I or II compactflash cards & microdrives..
 This model was also used on Akai MPC2000XL drum machines or the like that has an IDE expansion port . For MPC2000XL, please use OS 1.20 and up. Check it out at http://www.akaipro.com/
click here
PSI 2 front-slot bootable (model IICA) front-mount internal IDE reader/writer  with 1  Compactflash type II slot and 1 PCMCIA type III slot.
 This model was also used on Akai MPC2000XL drum machines or the like that has an IDE expansion port . For MPC2000XL, please use OS 1.20 and up. Check it out at http://www.akaipro.com/
click here



Want to find a rugged CF card for your industrial application? Find it here.
We also offer the new, fast and bootable SATA-CF adapters/readers. Please go to here for more information.



WARRANTY & SUPPORT.  Tech support from manufacturer and PSI.  1 year warranty.



TO ORDER OR INQUIRE.  Please click here to place an online order or send e-mail inquiry to sales@psism.com or call (301) 572-2168. We accept Visa, MasterCard, Discover and American Express as well as government and university POs.  International orders may be conditionally accepted. Please click here to order or view our ordering information page.
