Industrial & Commercial Grade MLC (Multi-Layer Cell) Flash Memory Storages

     PSI mainly supplies SLC (Single-Level Cell) products because we are focusing on industrial and military markets.  The industrial-grade SLC (Single-Level Cell) flash storage products are high shock & vibration-resistant and meet military MIL-STD 810F standards.  Please click here for our offerings of the SLC industrial-grade flash storage product information.

     Some MLC (Multi-Level Cell ) products are also provided for some commercial & industrial applications which are not so critical and need cost-effective storage solutions. MLC NAND Flash offers larger capacity (typically twice the density of SLC) and a more economical cost.

    MLC and SLC are different production processes. MLC NAND flash is appropriate for short-term, price sensitive applications. It mostly applies in consumer market, because it is much cheaper and can be packed with higher capacity. Industrial & military customers prefer to use SLC NAND flash ICs because they offer higher, more reliable performance and much longer I/O life cycles. For Samsung NAND Flash as an example, SLC NAND flash offers 10 times as long programming cycles as the MLC flash. Please click and read here to find out the advantages of the SLC Flash ICs and the comparisons between SLC and MLC.

    If you are only interested in industrial-grade SLC flash storages, please go to here.

PSI / APRO MLC Product List:

1. MLC Cfast Card (The new standard of flash storage card!)
2. MLC CompactFlash  Card
3. MLC GDK-2010 USB Flash Disk
4. G3 MLC USB Flash Disk
6. 1.8" MLC ZIF PATA (IDE) Solid State Disk (Discontinued)
7. 2.5" MLC PATA (IDE) Solid State Disk  in Rugged Metal Casing
8. 2.5" MLC PATA (IDE) Solid State Disk; supports Fast Erase (FE) & Secure Erase (SE)
10. 2.5" MLC PATA (IDE) Solid State Disk; supports Fast Erase (FE)
11. 2.5" MLC SATA II Solid State Disk in Rugged  Metal Casing
12. 2.5" MLC SATA II Solid State Disk; supports Fast Erase (FE)
13. 2.5" MLC SATA II Solid State Disk; supports Fast Erase (FE) & Secure Erase (SE)
14. 2.5" Rugged Metal Ultra High IOPS MLC SATA II SSD
15. 2.5" MUSE-C Series Metal MLC SATA III SSDs with built-in DDRIII SDRAM Cache (New!)
16 Hermes-D Series MLC Mini SATA flash (MSM) Modules, supporting Write Protect Function  (New!)
17. 1.8"  MLC SATA II  SSD; supports Fast Erase (FE) (New!)
18 MLC micro USB Flash (MUM) Module
19 1.8"  SLIM Lite (JEDEC) SATA II  SSD; supports Fast Erase (FE)  (New!)

     For MLC flash storages by Memoright and C-1 Tech, please click here.
    If you are interested in the more durable and reliable industrial-grade SLC flash storages, please go to here.


Order Information for Industrial MLC Flash Storages:

All products below are RoHS-Compliant
Package: Bulk Package
Optional conformal coating is available for 15~ 20% more than the pricing below.
Delivery: Normally 3 weeks upon receiving confirmed order.
Compliance: MIL-STD-810F, Vibration: 15G; Shock: 1500G
 Warranty: Items supporting operating temp. of  0C ~ 70C --  1 year;
               Items supporting operating temp. of  -40C ~ 85C --  3 years

Part #'s and pricing of different MLC flash memory products are listed below. Due to the fast fluctuations of the MLC flash ICs, the pricing listed below is for reference only (06/21/2012). Actual prices may be different. Please e-mail us at sales@psism.com to confirm the prices.



1.   MLC Industrial Hermes-D Series CFast Card  (This is not a compact flash card.)

APRO Industrial MLC CFast Card with SATA Interface
Wide Temp. (-40 ~ 85 C) , with conformal coating.
MIL-STD-810F, Vibration: 15G; Shock: 1500G
 For specifications, please click Here.
Part Number Description  Sample Price

WPCFA-008G-JDCMM/C

 8GB MLC CFast Card, Wide Temp. (-40 ~ 85 C) with conformal coating

$69


CFast Card, a new breed, not a compact flash card

WPCFA-016G-JDCMM/C

16GB MLC CFast Card, Wide Temp. (-40 ~ 85 C) with conformal coating

$87

WPCFA-032G-JDCMM/C

32GB MLC CFast Card, Wide Temp. (-40 ~ 85 C) with conformal coating

$125

WPCFA-064G-JDCMM/C

64GB MLC CFast Card, Wide Temp. (-40 ~ 85 C) with conformal coating

$314

Commercial Temp. (0 ~ 70 C) MLC CFast Cards
 MIL-STD-810F, Vibration: 15G; Shock: 1500G
For Specification, click Here.
Part Number Description  Sample Price

SPCFA-008G-JDCMM

 8GB MLC  CFast Card, Commercial Temp. (0 ~ 70 C)

$57


CFast Card, a new breed, not a compact flash card

SPCFA-016G-JDCMM

16GB MLC  CFast Card, Commercial Temp. (0 ~ 70 C)

$72

SPCFA-032G-JDCMM

32GB MLC  CFast Card, Commercial Temp. (0 ~ 70 C)

$105

SPCFA-064G-JDCMM

64GB MLC  CFast Card, Commercial Temp. (0 ~ 70 C)

$261

 Back to Top

2.   MLC High Speed Compact Flash (CF) Cards

APRO Hercules-K Series High Speed Industrial MLC CompactFlash Cards
 MIL-STD-810F, Vibration: 15G; Shock: 1500G
 For Specification, click Here.

Optional Rugged Metal Frame Kit (SRCFC-xxx) costs $6 more for each unit.
Optional wide-temp. (-40 ~ +85 deg C) cards with conformal coating treatment on PCBA add 20% more than the pricing below

Part Number Description
High speed 580X, Hercules-K Series		 Sample Price

SPCFC-004G-MKCMC-UF*

APRO 4GB 580X MLC CF Card, (0 ~ 70 C)

 $32
SPCFC-008G-MKCMC-UF*

APRO 8GB 580X MLC CF Card, (0 ~ 70 C)

 $40
SPCFC-016G-MKCMC-UF*

APRO 16GB 580X  MLC CF Card, (0 ~ 70 C)

 $58
SPCFC-032G-MKCMC-UF*

APRO 32GB 580X MLC CF Card, (0 ~ 70 C)

 $99
SPCFC-064G-MKCMC-UF*

APRO 64GB 580X MLC CF Card, (0 ~ 70 C)

 $315


Note: The MLC CF cards above can have many different versions: with the following different (-UF/-UA/-PF/-PR/-PA/-AF/-AR/-AA) suffix options. The -AA version cards are most versatile and are hence recommended for newer motherboards since they can automatically detect and switch to fixed disk or removable disk mode. It can also automatically detect and switch to PIO- or UDMA- data modes. If your applications call for a particular mode, please check the following suffix decoder.

-UF : UDMA & Fixed Disk Mode -UR : UDMA & Removable Disk -UA : UDMA & Auto Detect
-PF : PIO & Fixed Disk Mode -PR : PIO & Removable Disk -PA : PIO & Auto Detect
-AF: Auto PIO or UDMA & Fixed Disk Mode -AR : Auto PIO or UDMA & Removable Disk -AA :  Auto PIO or UDMA & Auto Fixed or Removable Disk

 Back to Top

3.     MLC GDK-2010 USB Flash Disks

APRO GDK-2010 Industrial USB 2.0 MLC Flash Disks
Weight: 20g/.71oz,  Dimension: (32mm x89.30mm x11.30mm)
 Shock: 1500g, Vibration: 15g. Click here for Data Sheets.
Part Number Description  Sample Price

GDKUF-032G-JCCMC-F

32GB MLC USB 2.0 Flash Drive, Commercial Temp. (0 ~ 70 C)

 $205 Hermes_IDE_SSD_02_(1200x900).jpg

GDKUF-064G-JCCMC-F

64GB MLC USB 2.0 Flash Drive, Commercial Temp. (0 ~ 70 C)

 $389

GDKUF-128G-JCCMC-F

128GB MLC USB 2.0 Flash Drive, Commercial Temp. (0 ~ 70 C)

 $738
Part Number Description  Sample Price

GDKUF-032G-JCCMC-FC

32GB MLC USB 2.0 Flash Drive with conformal coating, Wide Temp. (-40 ~ 85 C)

 $245 Hermes_IDE_SSD_02_(1200x900).jpg

GDKUF-064G-JCCMC-FC

64GB MLC USB 2.0 Flash Drive with conformal coating, Wide Temp. (-40 ~ 85 C)

 $465

GDKUF-128G-JCCMC-FC

128GB MLC USB 2.0 Flash Drive with conformal coating, Wide Temp. (-40 ~ 85 C)

 $886

Back to Top

4.    G3  MLC USB Flash Disks

APRO  Hammer-D Series Industrial G3 MLC Portable USB Flash Drive
 Weight: 15g/.53oz,  Dimension: (17.60mm x47.30mm x8.40mm)
 MIL-STD-810F, Vibration: 15G; Shock: 1500G
 Wide Temp. (-40º ~+85º C)
 Click here for Spec-sheet, click here for Data-sheet.
More economical Commercial Temp. (0 ~ 70 C) drives are available upon request.

click: RoHS & WEEE Declaration
Part Number Description
Samsung Flash IC		 Sample Price

WMUFD-001G-ADCSM-3C

1GB G3 Wide Temp. MLC USB 2.0, with conformal coating. -40 ~ +85 C

 $40

WMUFD-002G-ADCSM-3C

2GB G3 Wide Temp. MLC USB 2.0,  with conformal coating. -40 ~ +85 C

 $37

WMUFD-004G-ADCSM-3C

4GB G3 Wide Temp. MLC USB 2.0, with conformal coating. -40 ~ +85 C.

 $53

WMUFD-008G-ADCSM-3C

8GB G3 Wide Temp. MLC USB 2.0,  with conformal coating. -40 ~ +85 C

 $62

WMUFD-016G-ADCSM-3C

16GB G3 Wide Temp. MLC USB 2.0,  with conformal coating. -40 ~ +85 C

 $133

APRO  Hammer-D Series Industrial G3  MLC Portable USB Flash Drive
Weight: 15g/.53oz,  Dimension: (17.60mm x47.30mm x8.40mm)
Commercial Temp. (0º ~ 70º C)
  Click here for Spec-sheet, click here for Data-sheet.

Part Number Description
Non-Samsung Flash IC		 Sample Price

SMUFD-001G-ADCSM-3

1GB G3 MLC USB 2.0, (0 ~ 70 C)

 $35

SMUFD-002G-ADCSM-3

2GB G3 MLC USB 2.0, (0 ~ 70 C)

 $32

SMUFD-004G-ADCSM-3

4GB G3 MLC USB 2.0, (0 ~ 70 C)

 $38

SMUFD-008G-ADCSM-3

8GB G3 MLC USB 2.0, (0 ~ 70 C)

 $54

SMUFD-016G-ADCSM-3

16GB G3 MLC USB 2.0, (0 ~ 70 C)

 $118

Back to Top

7    2.5" MLC PATA (IDE) SSD
Supports S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) Function.
Compliant to MIL-STD-810F, Vibration: 15G; Shock: 1500G
Optional wide-temp. (-40 ~ +85 degC) with conformal coating is available for 20% more than the pricing below.

Industrial MLC 2.5" Hermes-Series PATA (IDE) Flash Disks in Rugged Metal Casing
Commercial Temp. (0 ~ 70 C). For Specification, click Here.

Part Number Description  Sample Price

SR2IF-008G-JACMC-U

8GB, 2.5" Rugged Metal PATA (IDE) SSD, MLC

$195

SR2IF-016G-JACMC-U

16GB, 2.5" Rugged Metal PATA (IDE) SSD, MLC

$178

SR2IF-032G-JACMC-U

32GB, 2.5" Rugged Metal PATA (IDE) SSD, MLC

$245

SR2IF-064G-JACMC-U

64GB, 2.5" Rugged Metal PATA (IDE) SSD, MLC

$394

SR2IF-128G-JACMC-U

128GB, 2.5" Rugged Metal PATA (IDE) SSD, MLC

$690

SR2IF-256G-JACMC-U

256GB,  2.5" Rugged Metal PATA (IDE)SSD, MLC

$1,476
Remark: -U: defaulted as UDMA mode/Fixed disk type

Rugged Metal Casing is to improve the MLC SSD's endurance when operating in the harsh environments, especially for industrial and military applications.

 Back to Top



8   2.5" MLC PATA (IDE) SSD, supports FE & SE
Supports S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) Function.
Rugged Metal Casing is to improve the MLC SSD's endurance when operating in the harsh environments, especially for industrial and military applications.
 Optional wide-temp. (-40 ~ +85 degC) with conformal coating is available for 20% more than the pricing below.

2.5" PATA (IDE)  SSD APRO Industrial  MLC,  supports Fast Erase and Secure Erase
 Commercial Temp. (0 ~ 70 C)  Compliant to MIL-STD-810F, Vibration: 15G; Shock: 1500G
For  Specifications, click here.
Part Number Description  Sample Price

SR2IF-008G-JACMC-USE

8GB, 2.5"  Rugged Metal  PATA  (IDE) SSD, MLC,  supports FE/SE

 $225

SR2IF-016G-JACMC-USE

16GB, 2.5" Rugged Metal PATA (IDE) SSD, MLC   supports FE/SE

 $206

SR2IF-032G-JACMC-USE

32GB, 2.5" Rugged Metal PATA  (IDE) SSD, MLC supports FE/SE

 $279

SR2IF-064G-JACMC-USE

64GB, 2.5"  Rugged Metal PATA  (IDE) SSD, MLC  supports FE/SE

 $447

SR2IF-128G-JACMC-USE

128GB, 2.5" Rugged Metal PATA  (IDE) SSD, MLC supports FE/SE

 $795

SR2IF-256G-JACMC-USE

256GB, 2.5" Rugged Metal PATA  (IDE) SSD, MLC supports FE/SE

 $1,698

Back to Top

10    2.5" MLC PATA (IDE)  SSD supporting FE
 Supports S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) Function.
 Rugged Metal Casing is to improve the MLC SSD's endurance when operating in the harsh environments,
 Optional wide-temp. (-40 ~ +85 degC) with conformal coating is available for 20% more than the pricing below.

2.5" PATA (IDE)  SSD APRO Industrial  MLC  supports Fast Erase (FE)
 Commercial Temp. (0 ~ 70 C).  Compliant to MIL-STD-810F, Vibration: 15G; Shock: 1500G
Part Number Description  Sample Price

SR2IF-008G-JACMC-UFE

8GB, 2.5" PATA  (IDE) SSD, MLC  supports FE

 $210

SR2IF-016G-JACMC-UFE

16GB, 2.5" PATA  (IDE) SSD, MLC   supports FE

 $190

SR2IF-032G-JACMC-UFE

32GB, 2.5" PATA  (IDE) SSD, MLC  supports FE

 $260

SR2IF-064G-JACMC-UFE

 64GB, 2.5" PATA  (IDE) SSD, MLC  supports FE

 $419

SR2IF-128G-JACMC-UFE

128GB, 2.5" PATA  (IDE) SSD, MLC   supports FE

 $738

SR2IF-256G-JACMC-UFE

256GB, 2.5" PATA  (IDE) SSD, MLC   supports FE

 $1,581
Suffix Remarks:
   -UFE: Hardware and software ATA command code for Fast Erase function.
   -C: Industrial Grade with special conformal coating treatment on PCBA

Back to Top

Back to Top

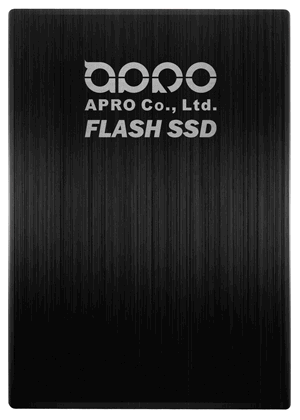

 APRO Metal 2.5” SATA II MLC SSD comes with 7 pins + 15 pins Serial ATA connector and mini-B USB connector.



11    2.5"  MLC SATA II SSD
 These are the direct drop-replacement of the internal 2.5" consumer-grade rotary hard drives (HDDs). For harsh environment: Compliant to MIL-STD-810F, Vibration: 15G; Shock: 1500G
Read speed is 154MB/s max. / write speed: 93MB/s max. Fast boot-ups!
Supports S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) Function.
Optional wide-temp. (-40 ~ +85 degC) with conformal coating is available for 20% more than the pricing below.

2.5"  SATA II SSD APRO  MLC Flash Drive in Rugged Metal Casing
Commercial Temp. ( 0 ~ 70 C), 1 Year warranty
For  Specifications click here and Performance, please click here.
Part Number Description  Sample Price

SR2SF-008G-JACMC

8GB, 2.5" Rugged Metal SATA II  SSD, MLC

 $188

SR2SF-016G-JACMC

16GB, 2.5" Rugged Metal SATA II  SSD, MLC

 $170

SR2SF-032G-JACMC

32GB, 2.5" Rugged Metal SATA II  SSD, MLC

 $225

SR2SF-064G-JACMC

64GB, 2.5" Rugged Metal SATA II  SSD, MLC

 $368

SR2SF-128G-JACMC

128GB, 2.5" Rugged Metal SATA II  SSD, MLC

 $645

SR2SF-256G-JACMC

256GB, 2.5" Rugged Metal SATA II  SSD, MLC

 $1,455

We also supply other SAT II and SATA III SSDs as an alternative. Please go to here to compare.

Back to Top

12    2.5" MLC SATA II SSDs Supporting FE, in Rugged Metal Casing
Supports S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) Function.
 Rugged Metal Casing is to improve the MLC SSD's endurance when operating in the harsh environments.
 Optional wide-temp. (-40 ~ +85 degC) with conformal coating is available for 20% more than the pricing below.

Part Number Description
(0 ~ 70 deg C), Compliant to MIL-STD-810F, Vibration: 15G; Shock: 1500G		 Sample Price

SR2SF-008G-JACMC-UFE

8GB, 2.5" SATA II  SSD, MLC supports  FE

 $205

SR2SF-016G-JACMC-UFE

16GB, 2.5" SATA II  SSD, MLC supports  FE

 $182

SR2SF-032G-JACMC-UFE

32GB, 2.5" SATA II  SSD, MLC supports  FE

 $240

SR2SF-064G-JACMC-UFE

64GB, 2.5" SATA II  SSD, MLC supports  FE

 $375

SR2SF-128G-JACMC-UFE

128GB, 2.5" SATA II  SSD, MLC  supports  FE

 $690

SR2SF-256G-JACMC-UFE

256GB, 2.5" SATA II  SSD, MLC supports  FE

 $1,557

Back to Top

13   2.5" MLC SATA II SSD supports FE & SE, in Rugged Metal Casing
Supports S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) Function.
 Compliant to MIL-STD-810F, Vibration: 15G; Shock: 1500G
 Optional wide-temp. (-40 ~ +85 deg C) with conformal coating is available for 20% more than the pricing below.

Part Number Description
(0 ~ 70 deg C)		 Sample Price

SR2SF-008G-JACMC-USE

8GB, 2.5" Rugged Metal SATA II  SSD, MLC supports  FE/SE

 $215

SR2SF-016G-JACMC-USE

16GB, 2.5" Rugged Metal SATA II  SSD, MLC  supports  FE/SE

 $195

SR2SF-032G-JACMC-USE

32GB, 2.5" Rugged Metal SATA II  SSD, MLC  supports  FE/SE

 $259

SR2SF-064G-JACMC-USE

64GB, 2.5" Rugged Metal SATA II  SSD, MLC  supports  FE/SE

 $423

SR2SF-128G-JACMC-USE

128GB, 2.5" Rugged Metal SATA II  SSD, MLC    supports  FE/SE

 $742

SR2SF-256G-JACMC-USE

256GB, 2.5" Rugged Metal SATA II  SSD, MLC  supports  FE/SE

 $1,675

Back to Top

14. APRO Rugged Metal Ultra High IOPS 2.5" MLC SATA II SSD

SATA 2.6 compliant: up to 3.0 Gb/s speed with built-in 128-bit AES encryption, Ultra high Read/Write IOPS. Supports Windows-7 TRIM command.  Compliant to MIL-STD-810F, Vibration: 15G; Shock: 1500G
Optional wide-temp. (-40 ~ +85 degC) with conformal coating is available for 20% more than the pricing below.

Part Number Description
 Commercial  Temp. (0 ~  70C)		 Sample Price
SR2SF-040G-FACMC 40GB, Rugged Metal Ultra High IOPS 2.5" SATA II SSD, MLC  $218
SR2SF-060G-FACMC 60GB, Rugged Metal Ultra High IOPS 2.5" SATA II SSD, MLC  $252
SR2SF-080G-FACMC 80GB, Rugged Metal Ultra High IOPS 2.5" SATA II SSD, MLC  $385
SR2SF-120G-FACMC 120GB, Rugged Metal Ultra High IOPS 2.5" SATA II SSD, MLC  $395
SR2SF-160G-FACMC 160GB, Rugged Metal Ultra High IOPS 2.5" SATA II SSD, MLC  $895
SR2SF-240G-FACMC 240GB, Rugged Metal Ultra High IOPS 2.5" SATA II SSD, MLC  $1,159
  Rugged Metal 2.5" MLC SATA III MLC SSD with built-in DDRIII SDRAM Cache
 Commercial  Temp. (0 ~  70C) , Supports embedded ARM-9 32-bit CPU structure
Supports DDRIII SDRAM 512MB cache for fast performance.
 Optional wide-temp. (-40 ~ +85 degC) with conformal coating is available for 15% more than the pricing below.
Part Number Description
 Commercial  Temp. (0 ~  70C), 		 Sample Price
SR2SR-016G-JDCMC 16GB Rugged Metal 2.5" SATA II MLC SSD built-in DDRII SDRAM Cache, MLC $227

SR2SR-032G-JDCMC 32GB Rugged Metal 2.5" SATA II MLC SSD built-in DDRII SDRAM Cache, MLC $265
SR2SR-064G-JDCMC 64GB  Rugged Metal 2.5" SATA III MLC SSD built-in DDRIII SDRAM Cache,  MUSE-B series  $445
SR2SR-128G-JDCMC 128GB Rugged Metal 2.5" SATA III MLC SSD built-in DDRIII SDRAM Cache, MUSE-B series   $795
SR2SR-256G-JDCMC 256GB Rugged Metal 2.5" SATA III MLC SSD built-in DDRIII SDRAM Cache,  MUSE-B series   $1,495



Back to Top

15. APRO  Metal  2.5" SATA III MLC SSD suppo./rts DDRIII SDRAM ./Cache (New!), HERMES-E Series

 Spec-sheet :click here,  Data-sheet : click here

Part Number Description
 Wide  Temp. (-40º ~  +85ºC) with special conformal coating treatment on PCBA		 Sample Price
WR2SF 064G -JECMM-C 64GB, Metal 2.5" SATA III SSD, MLC, built-in DDRIII SDRAM Cache, Hermes-E Series  $
WR2SF128G -JECMM-C 128GB, Metal 2.5" SATA III SSD, MLC, built-in DDRIII SDRAM Cache, Hermes-E Series  $
WR2SF 256G -JECMM-C 256GB, Metal 2.5" SATA III SSD, MLC, built-in DDRIII SDRAM Cache,  Hermes-E Series  $
WR2SF 512G -JECMM-C 512GB, Metal 2.5" SATA III SSD, MLC, built-in DDRIII SDRAM Cache,  Hermes-E Series   $1,499
Part Number Description
 Commercial  Temp. (0º ~  70ºC)		 Sample Price
SR2SF 064G -JECMM  64GB, Metal 2.5" SATA III SSD, MLC, built-in DDRIII SDRAM Cache, Hermes-E Series  $
SR2SF128G -JECMM  128GB, Metal 2.5" SATA III SSD, MLC, built-in DDRIII SDRAM Cache, Hermes-E Series  $
SR2SF 256G -JECMM  256GB, Metal 2.5" SATA III SSD, MLC, built-in DDRIII SDRAM Cache,  Hermes-E Series  $
SR2SF 512G -JECMM  512GB, Metal 2.5" SATA III SSD, MLC, built-in DDRIII SDRAM Cache,  Hermes-E Series   $1,310

15. APRO  Metal  2.5" SATA III MLC SSD suppo./rts DDRIII SDRAM ./Cache (New!), MUSE-C Series

 Spec-sheet :click here,  Data-sheet : click here,

Part Number Description
 Wide  Temp. (-40º ~  +85ºC) with special conformal coating treatment on PCBA		 Sample Price
WM2SR064G-VCCTM-C 64GB, Metal 2.5" SATA III SSD, MLC, built-in DDRIII SDRAM Cache, MUSE-C Series  $349
WM2SR128G-VCCTM-C 128GB, Metal 2.5" SATA III SSD, MLC, built-in DDRIII SDRAM Cache, MUSE-C Series  $569
WM2SR256G-VCCTM-C 256GB, Metal 2.5" SATA III SSD, MLC, built-in DDRIII SDRAM Cache, MUSE-C Series  $1,049
WM2SR512G-VCCTM-C 512GB, Metal 2.5" SATA III SSD, MLC, built-in DDRIII SDRAM Cache, MUSE-C Series  $1,399
Part Number Description
 Commercial  Temp. (0º ~  70ºC)		 Sample Price
SM2SR064G-VCCTM 64GB, Metal 2.5" SATA III SSD, MLC, built-in DDRIII SDRAM Cache, MUSE-C Series  $295
SM2SR128G-VCCTM 128GB, Metal 2.5" SATA III SSD, MLC, built-in DDRIII SDRAM Cache, MUSE-C Series  $475
SM2SR256G-VCCTM 256GB, Metal 2.5" SATA III SSD, MLC, built-in DDRIII SDRAM Cache, MUSE-C Series  $899
SM2SR512G-VCCTM 512GB, Metal 2.5" SATA III SSD, MLC, built-in DDRIII SDRAM Cache, MUSE-C Series  $1,279







16. APRO  MLC mini SATA flash (MSM) Module, supports Write Protect Function  (New!), Hermes-D Series
Spec-sheet : click here,  Data-sheet : click here,

Part Number Description
Wide  Temp. (-40º ~  +85ºC) with special conformal coating treatment  		 Sample Price
WBMSM008G-JDCMM-C 8GB MLC mini SATA Flash (MSM) Module, Hermes-D Series  $49
WBMSM016G-JDCMM-C 16GB MLC mini SATA Flash (MSM) Module, Hermes-D Series $66
WBMSM032G-JDCMM-C 32GB MLC mini SATA Flash (MSM) Module, Hermes-D Series $110
WBMSM064G-JDCMM-C 64GB MLC mini SATA Flash (MSM) Module, Hermes-D Series  $225
WBMSM128G-JDCMM-C 128GB MLC mini SATA Flash (MSM) Module, Hermes-D Series  $540
Part Number Description
 Commercial  Temp. (0 ~  70C)		 Sample Price
SBMSM008G-JDCMM 8GB MLC mini SATA Flash (MSM) Module, Hermes-D Series  $42
SBMSM016G-JDCMM 16GB MLC mini SATA Flash (MSM) Module, Hermes-D Series $55
SBMSM032G-JDCMM 32GB MLC mini SATA Flash (MSM) Module, Hermes-D Series $94
SBMSM064G-JDCMM 64GB MLC mini SATA Flash (MSM) Module, Hermes-D Series  $188
SBMSM128G-JDCMM 128GB MLC mini SATA Flash (MSM) Module, Hermes-D Series  $450



We also supply MemoRight SAT II and SATA III SSDs as an alternative. Please go to here to compare.

Back to Top

17. 1.8"  MLC SATA II  SSD  (New!)
Compliant to MIL-STD-810F, Vibration: 15G; Shock: 1500G
Optional wide-temp. (-40 ~ +85 deg C) with conformal coating is available for 20% more than the pricing below.
APRO Rugged 1.8" MLC SATA II, supports Fast Erase
Commercial  Temp. (0 ~  70C)
Part Number Description  Sample Price
SR8SF-008G-JACMC-UFE 8GB, Rugged  1.8" SATA II SSD, MLC, supports FE $204

SR8SF-016G-JACMC-UFE 16GB, Rugged  1.8" SATA II SSD, MLC, supports FE $185
SR8SF-032G-JACMC-UFE 32GB, Rugged  1.8" SATA II SSD, MLC, supports FE $240
SR8SF-064G-JACMC-UFE 64GB, Rugged  1.8" SATA II SSD, MLC, supports FE $375
SR8SF-128G-JACMC-UFE 128GB, Rugged  1.8" SATA II SSD, MLC, supports FE $810
APRO Rugged 1.8" MLC SATA II, supports Secure Erase and  Fast Erase
Commercial  Temp. (0 ~  70C). Compliant to MIL-STD-810F, Vibration: 15G; Shock: 1500G
Part Number Description  Sample Price
SR8SF-008G-JACMC-USE 8GB, Rugged  1.8" SATA II SSD, MLC, supports SE & FE $215
SR8SF-016G-JACMC-USE 16GB, Rugged  1.8" SATA II SSD, MLC, supports SE & FE $195
SR8SF-032G-JACMC-USE 32GB, Rugged  1.8" SATA II SSD, MLC, supports SE & FE $258
SR8SF-064G-JACMC-USE 64GB, Rugged  1.8" SATA II SSD, MLC, supports SE & FE $405
SR8SF-128G-JACMC-USE 128GB, Rugged  1.8" SATA II SSD, MLC, supports SE & FE $867

APRO Rugged 1.8" MLC SATA II SSD, without  Fast Erase Function
 Commercial  Temp. (0 ~  70C), Compliant to MIL-STD-810F, Vibration: 15G; Shock: 1500G
Part Number Description  Sample Price
SR8SF-008G-JACMC 8GB, Rugged  1.8" SATA II SSD, MLC  $183
SR8SF-016G-JACMC 16GB, Rugged  1.8" SATA II SSD, MLC $199
SR8SF-032G-JACMC 32GB, Rugged  1.8" SATA II SSD, MLC $215
SR8SF-064G-JACMC 64GB, Rugged  1.8" SATA II SSD, MLC $360
SR8SF-128G-JACMC 128GB, Rugged  1.8" SATA II SSD, MLC $675

Back to Top

 18.   APRO MLC micro USB Flash (MUM) Module,
THEMIS-B(  Series (EOL) , replaced by DEMETER Series

-VS:Vertical type standard form factor
-HS:Horizontal type standard form factor
-HL: Horizontal type low profile form factor

 Please click here,  for specs or  click here for data sheet.

Part Number Description  Sample Price
SPMUM008G-EBCTM-VS 8GB APRO MLC micro USB Flash (MUM) Module, 8GB, THEMIS-B,  0 ~ +70 C $57

SPMUM016G-EBCTM-VS 16GB APRO MLC micro USB Flash (MUM) Module, 16GB, THEMIS-B,  0 ~ +70 C $92
Part Number Description  Sample Price
WBMUM004G-EBCTM-HS (HL)-C 4GB APRO MLC micro USB Flash (MUM) Module, with conformal coating. -40 ~ +85 C $46

WBMUM008G-EBCTM-HS (HL)-C 8GB APRO MLC micro USB Flash (MUM) Module, with conformal coating. -40 ~ +85 C $60
WBMUM016G-EBCTM-HS (HL)-C 16GB APRO MLC micro USB Flash (MUM) Module, with conformal coating. -40 ~ +85 C $111
WBMUM032G-EBCTM-HS (HL)-C 32GB APRO MLC micro USB Flash (MUM) Module, with conformal coating. -40 ~ +85 C $198
Part Number Description  Sample Price
SBMUM004G-EBCTM-HS (HL) 4GB APRO MLC micro USB Flash (MUM) Module,  0 ~ +70 C $38

SBMUM008G-EBCTM-HS (HL) 8GB APRO MLC micro USB Flash (MUM) Module,  0 ~ +70 C $50
SBMUM016G-EBCTM-HS (HL) 16GB APRO MLC micro USB Flash (MUM) Module,  0 ~ +70 C $92
SBMUM032G-EBCTM-HS (HL) 32GB APRO MLC micro USB Flash (MUM) Module,  0 ~ +70 C $165

Back to Top

19. 1.8"  MLC Slim Lite SATA II  SSDs, without casing
 Compliant to MIL-STD-810F, Vibration: 15G; Shock: 1500G
APRO 1.8" MLC Slim Lite SATA II SSD, Supports Fast Erase (FE)
 Wide  Temp. (-40 ~  85C),  with conformal coating.
Part Number Description  Sample Price
WB8SJ-004G-JACMC-UFE/C 4GB,1.8" Slim Lite SATA II SSD,  MLC supports FE, with conformal coating $135
WB8SJ-008G-JACMC-UFE/C 8GB,1.8" Slim Lite SATA II SSD, MLC, supports FE, with conformal coating $125
WB8SJ-016G-JACMC-UFE/C 16GB,1.8" Slim Lite SATA II SSD, MLC, supports FE, with conformal coating $155
WB8SJ-032G-JACMC-UFE/C 32GB,  1.8" Slim Lite SATA II SSD, MLC, supports FE, with conformal coating $237
WB8SJ-064G-JACMC-UFE/C 64GB,  1.8" Slim Lite SATA II SSD, MLC, supports FE, with conformal coating $497
APRO 1.8" MLC Slim Lite SATA II SSD, Supports Fast Erase ( FE)
 Commercial  Temp. (0 ~  70C),
Part Number Description  Sample Price
SB8SJ-004G-JACMC-UFE 4GB,1.8" Slim Lite SATA II SSD,  MLC supports FE $113
SB8SJ-008G-JACMC-UFE 8GB,  1.8" Slim Lite SATA II SSD, MLC, supports FE $105
SB8SJ-016G-JACMC-UFE 16GB,1.8" Slim Lite SATA II SSD, MLC, supports FE $129
SB8SJ-032G-JACMC-UFE 32GB,  1.8" Slim Lite SATA II SSD, MLC, supports FE $199
SB8SJ-064G-JACMC-UFE 64GB,  1.8" Slim Lite SATA II SSD, MLC, supports FE $415
APRO 1.8" MLC Slim Lite SATA II SSD, Supports Secure Erase and Fast Erase ( FE)
 Wide  Temp. (-40 ~  85C),  with conformal coating
Part Number Description  Sample Price
WB8SJ-004G-JACMC-USE/C 4GB,1.8" Slim Lite SATA II SSD,  MLC supports SE & FE, with conformal coating $145
WB8SJ-008G-JACMC-USE/C 8GB,  1.8" Slim Lite SATA II SSD, MLC, supports SE & FE, with conformal coating $132
WB8SJ-016G-JACMC-USE/C 16GB,1.8" Slim Lite SATA II SSD, MLC, supports SE & FE, with conformal coating $169
WB8SJ-032G-JACMC-USE/C 32GB,  1.8" Slim Lite SATA II SSD, MLC, supports SE & FE, with conformal coating $255
WB8SJ-064G-JACMC-USE/C 64GB,  1.8" Slim Lite SATA II SSD, MLC, supportsSE & FE, with conformal coating $535

APRO 1.8" MLC Slim Lite SATA II SSD, Supports Secure Erase and Fast Erase ( FE)
 Commercial  Temp. (0 ~  70C),
Part Number Description  Sample Price
SB8SJ-004G-JACMC-USE 4GB,1.8" Slim Lite SATA II SSD,  MLC supports SE &FE $122
SB8SJ-008G-JACMC-USE 8GB,  1.8" Slim Lite SATA II SSD, MLC, supports SE & FE $111
SB8SJ-016G-JACMC-USE 16GB, 1.8" Slim Lite SATA II SSD, MLC, supports SE & FE $140
SB8SJ-032G-JACMC-USE 32GB,  1.8" Slim Lite SATA II SSD, MLC, supports SE & FE $210
SB8SJ-064G-JACMC-USE 64GB,  1.8" Slim Lite SATA II SSD, MLC, supports SE & FE $445

 APRO 1.8" MLC Slim Lite SATA II SSD, without  Fast Erase
Wide  Temp. (-40 ~  85C),  with conformal coating
Part Number Description  Sample Price
WB8SJ-004G-JACMC/C 4GB, 1.8" Slim Lite SATA II SSD, MLC, with conformal coating  $128
WB8SJ-008G-JACMC/C 8GB, 1.8" Slim Lite SATA II SSD, MLC, with conformal coating $115
WB8SJ-016G-JACMC/C 16GB, 1.8" Slim Lite SATA II SSD, MLC, with conformal coating $148
WB8SJ-032G-JACMC/C 32GB, 1.8" Slim Lite SATA II SSD, MLC, with conformal coating $220
WB8SJ-064G-JACMC/C 64GB, 1.8" Slim Lite SATA II SSD, MLC, with conformal coating $465
 APRO 1.8" MLC Slim Lite SATA II SSD, without  Fast Erase
Commercial  Temp. (0 ~  70C),
Part Number Description  Sample Price
SB8SJ-004G-JACMC 4GB, 1.8" Slim Lite SATA II SSD, MLC  $107


SB8SJ-008G-JACMC 8GB, 1.8" Slim Lite SATA II SSD, MLC $95
SB8SJ-016G-JACMC 16GB, 1.8" Slim Lite SATA II SSD, MLC $123
SB8SJ-032G-JACMC 32GB, 1.8" Slim Lite SATA II SSD, MLC $185
SB8SJ-064G-JACMC 64GB, 1.8" Slim Lite SATA II SSD, MLC $389

Back to Top

PSI also supplies the other alternative flash storage solutions as shown below.  Please click the categories  below to jump forward.

Smart/Adtron MLC Flash Drives MemoRight 2.5" MLC SATA Drives
C-1 MLC P6000 SATA Drives IDE and USB Embedded Flash Drives

    If you are interested in the more durable and reliable industrial-grade SLC flash storages, please go to here.



 Back to Top

WARRANTY & SUPPORT.  Tech support from manufacturer and PSI. For tech support and/or RMA, please go to http://www.psism.com/support.htm. 1 year warranty..


TO ORDER OR INQUIRE.  Please click here to place an online order or send e-mail inquiry to sales@psism.com or call (301) 572-2168. We accept Visa, MasterCard, Discover and American Express as well as government and university POs.  International orders may be conditionally accepted. Please click here to order or view our ordering information page.

All APRO industrial flash storage drives and cards are made-to-order and they are for special order only. Lead time is up to 3 weeks. Special orders are non-returnable and non-exchangeable. Products are covered by manufacturer's warranty.

Type in a keyword to search our site




www.psism.com

|  New Products  |  PCMCIA Cards / Readers   |  Industrial / Rugged Memory Products   |  SRAM & Linear Flash   |
|   SATA & IDE Flash Drives   |  Industrial ATA & CF Cards   |   Embedded  Memory   | Tronlink Products  |

Copyright© 1995 ~ 2013 Primary Simulation, Inc. (PSI)
2963 Mozart Drive, Silver Spring, MD 20904  U.S.A.
Tel:(301) 572-2168,  Fax: (301) 847-0739
10:00AM ~ 6:00PM U.S. Eastern Time
Email: sales@psism.com

6/22/2012,p,updated
