Industrial Grade Rugged Secure Digital (SD) Cards for Mission-Critical Applications

Why do you need industrial-grade memory cards instead of their cheaper consumer-grade counterparts?

Industrial-grade cards are made to endure severe operating conditions such as high impact, continuous vibration, low  and/or high operating temperature. These cards are durable and can last intensive reads/writes. Certain cards are even made to be moisture-resistant. Consumer-grade memory cards are not as durable. For most of the industrial applications which normally require intensive I/O cycles, the consumer-grade cards tend to fail prematurely.

PSI supplies industrial Grade Secure Digital (SD) flash cards by APRO and C-1 Technology. For other industrial data storage devices, please click here.

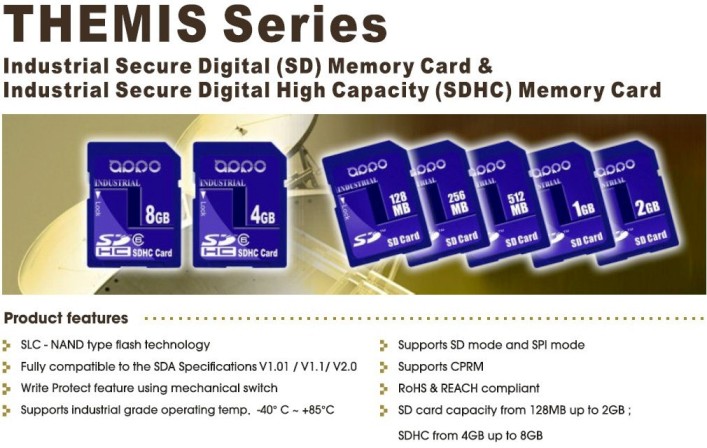

APRO  Industrial Grade SD Flash Cards:

These industrial-grade 3.3V SD cards are RoHS-compliant. They offer reliable storage of 2,000,000 write/erase cycles and 10-year data retention, and and fast data speed up to 10MB/sec. For detailed specifications, please click here.

Wide-Temperature Secure Digital (SD) Flash Cards:
Operating Temp.: -40 ~ +85 deg C.  High shock up to 1000G & vibration-resistance, 15G vibration peak-to-peak. 5-year warranty.

Note: Purchase of these industrial SD cards are on special order basis and may be subject to MOQ . Normal lead time is 2-3 weeks.  Please click here to inquire volume pricing and lead time.

Ordering Information:

C-1 Tech  Industrial Grade SD Flash Cards:

Product Specifications

1. Environmental Specifications

Item Condition

Temperature (Storage) -65℃ to 150℃
Temperature (Operation) -40℃ to 85℃
Humidity 25% to 95%
Salt atmosphere 3% NaCl
ESD Protection ±4kV HBM
Vibration 15G (Peak to Peak)
Shock 1000G Max

2. Reliability and Durability

Item Duration:

Durability 10,000 mating cycles
Drop Test 1.5m free fall:

Visual Inspection/Shape and Form No warp age; no mold skin; complete form; no cavities; surface smoothness ≦-0.1 mm/cm2 within contour; no cracks; no pollution.

MTBF ＞1,000,000 hrs

The following parts are for special order only. Minimum order quantity applies.  Please click  here to inquire volume pricing and lead time.
