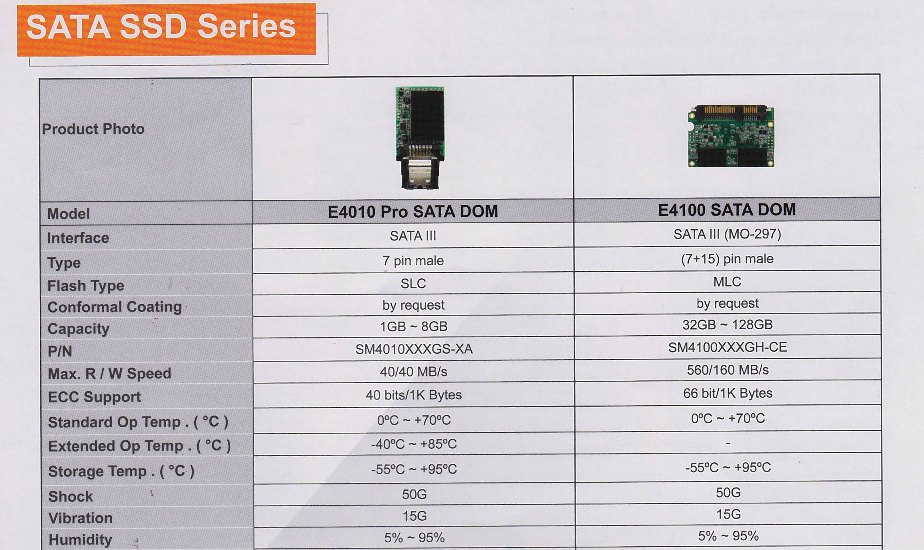

C-1 E4010 and E4010 Pro SATA DOM





1. lntroduction:

1.1 General Description

C-1 Technology's E4010 series SATA DOM supports SATA lll 6.0 Gb/s and are backward compatible with SATA tl 3.0 Gb/s speed. This E4010 SATA DOM SSD processor is architected to leverage today's densest MLC NAND Flash memory while E4010 Pro uses SLC NAND Flash memory.

 E4010 could be easily plugged into any standard 7pin SATA connector and replace HDD directly. This is the best solution for industrial equipments as a storage device. E4010 is designed to meet the stringent demands of server environments and enterprise applications. These new premium offerings are the pinnacle storage option excelling in performance, reliability, and power consumption.


l.2 Features

' Supports SATA lll 6.0Gb/s, SATA ll 3.0Gb/s, SATA I 1.5Gb/s and ATA-8 command set
. Supports Asynchronous, Synchronous (Toggle & ONFI) Nand Flash
. Native Command Queuing support
. S.M.A.R.T. command transport (SCT) technology
. Superior wear-leveling
. Intelligent Flash memory block management
. Up to 40 bits correctable per 512-byte sector (BCH) ECC Recovery
. Supports dynamic power management
. RoHS CE and FCC compliant
. Halogen-free
. Shock & Vibration:
      Operating 50G duration 0.5ms half sine wave
      Vibration 15G peak 10-2000 Hz with (15mins/Axis) 3axis
. Humidity:
     0C -55C/5-95% RH 10 cycles
. Temperature
     Operating Temperature: 0'C -70C
     Extended Operating Temperature: -40'C -85C
     Storage Temperature: -55'C -95'C
.Low Power consumption: Active write 0.68W(Max), Active read 0.60W(Max), ldle 0.29W(Max)



2. Order Information:

For E4010 SATA DOM product datasheet, please go to here.

C-1 E4010 Series SLC Industrial 7-pin High Speed SATA DOM, 0C ~ +70C

please click
here. for detailed datasheet!

Part Number  Capacity Price Product Picture
SM4010001GS-CA 1 GB  $28


-)

SM4010002GS-CA 2 GB $35
SM4010004GS-CA 4 GB $50
SM4010008GS-CA 8 GB $90

C-1 E4010 SLC Series Industrial 7-pin High Speed SATA DOM, -40C ~ +85C

please click
here. for detailed datasheet!

Part Number  Capacity Price

SM4010001GS-HA 1 GB  $34
SM4010002GS-HA 2 GB $43
SM4010004GS-HA 4 GB $65
SM4010008GS-HA 8 GB $109



C-1 MLC E4100 Series Industrial 22-pin (MO-297) High Speed SATA DOM with DRAM, 0C ~ +70C

please click here for detailed datasheet!

Part Number  Capacity Price Product Picture
SM4100032GH-CE 32 GB  $65

SM4100064GH-CE 64 GB $99
SM4100128GH-CE 128 GB $170



WARRANTY & SUPPORT.  Tech support from manufacturer and PSI. For tech support and/or RMA, please go to http://www.psism.com/support.htm


TO ORDER OR INQUIRE.  Please click here to place an online order or send e-mail inquiry to sales@psism.com or call (301) 572-2168. We accept Visa, MasterCard, Discover and American Express as well as government and university POs.  International orders may be conditionally accepted. Please click here to order or view our ordering information page.
