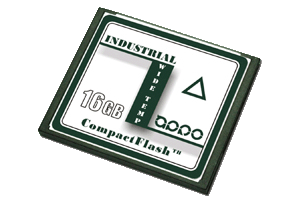

 Industrial  CompactFlash Card up to 16GB / 266X - Hermit Series

Industrial CompactFlash Card up to 16GB / 266X - Hermit Series
Please go to here to see the detailed data sheet of the rugged Hermit-series cards.


- SPCxxxxx Parts: Plastic Casing, commercial-temperature
   WRCxxxxx Parts:  Rugged Metal Casing, wide-temperature

- NAND type SLC flash technology
- CompactFlash specification 3.0 compliance
- Card Capacities from 128MB up to 16GB
- ATA Interface and True IDE Mode
- Data Transfer supports PIO-6 and UDMA-4
- Performance up to 40MB/s (266X)


- Compatibility : PCMCIA 2.1, PC Card ATA, CF 3.0 standard compatible
- Flash Technology : NAND type SLC flash based
- Form-factor : CompactFlash Type I
- Connector : 50 pins

- System Performance
Data Transfer Mode:  PIO-6 mode or UMDA-4 mode
Date Transfer Rate:  66.6Mbyte/sec under UDMA-4 mode
Sequential Read:  40MByte/sec (dual channel)
Sequential Write:  17Mbyte/sec (dual channel)
Average Access Time:  0.2ms (estimated)

- Environmental Specification
Operating Temperature:
      Commercial Temperature (SPCxxxxx) Cards : 0 degree ~ +70 degree C.
      Wide Temperature (WRCxxxxx) Cards : -40 degree ~ +85 degree C.

Non-operating Temperature:
      Commercial Grade: -20degree ~ 80 degree C.
Humidity:  5% ~ 95% non-condensing
Acoustic Noise:  0dB
Vibration:  15 G, compliance to MIL-STD-810F
Shock:  1,500G, compliance to MIL-STD-810F
Altitude:  70,000 feet

- Power Consumption
Power Requirement-       +5V + - 10% and +3.3V + - 5%
Reading Mode-           1 Channel 78 mA (Max.) / 2 Channel 124mA (Max.)
Writing Mode-             1 Channel 67 mA (Max.) / 2 Channel 121mA (Max.)
 Sleeping Mode-           1 Channel 1.3 mA (Max.) / 2 Channel 1.8mA (Max.)

- Reliability
MTBF : > 3,000,000 hours
ECC : Enhanced management per 4-bit ECC code
Endurance : > 2,000,000 times; contributed by wear-leveling and advanced bad
                                sector management algorithms
Data Reliability : < 1 non-recoverable error in 1014 bit read
Date Retention : 10 years

- Physical Specification
Weight (Max.) : 14.2.0g / 0.50oz
Dimension : 42.8 * 36.4 * 3.3 mm

-Warranty :
    Commercial Temperature (SPCxxxxx) Cards: 3 years
    Wide Temperature (WRCxxxxx) Cards: 5 years


Related links: Please go to here to find comparisons between Hermit and Titans-series CF cards. Please go to here to download the detailed data sheet of the rugged Hermit-series cards.

PRICE.   Click here for updated price


WARRANTY & SUPPORT.  Tech support from manufacturer and PSI. For tech support and/or RMA, please go to http://www.psism.com/support.htm

TO ORDER OR INQUIRE.  Please click here to place an online order or send e-mail inquiry to sales@psism.com or call (301) 572-2168. We accept Visa, MasterCard, Discover and American Express as well as government and university POs.  International orders may be conditionally accepted. Please click here to order or view our ordering information page.

Note: All MLC & SLC flash SSDs are made-to-order, so, order is non-cancelable and non-returnable once confirmed. Customers are advised to purchase samples to test and approve before placing mass orders.
