SanDisk
Industrial IDE Flash Drive Specification

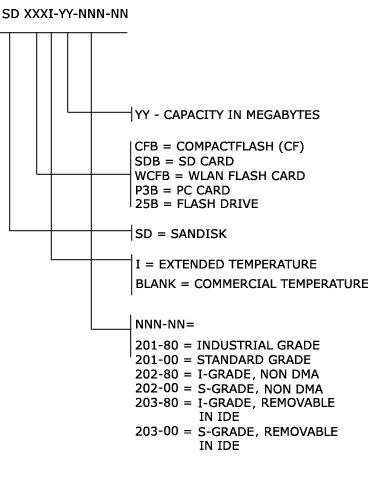

SANDISK INDUSTRIAL PART #
DECODER
Below you will find the Part Number Decoder for
your SanDisk product.
2.5" IDE FLASH DRIVE SPECIFICATIONS
|
|
| Specification |
Industrial
Grade |
| System Performance *Notes
1 & 2 |
|
| |
|
| Start-up Time |
|
| Sleep to Write |
2.5 msec max. |
| Sleetp To Read (CMD to DRQ) |
20 msec max. |
| Reset to Ready |
50 msec typical
400 msec max. |
| Data Transfer Rate to/from host |
16.0 MB/sec burst |
| Active to Sleep Delay |
Programmable |
| |
| Power
Requirements *Note
1 |
| |
|
| DC Input Voltage |
|
| Commercial Temp. |
3.3 V ± 10%, 5 V ±
10% |
| Extended Temp. |
3.3 V ± 10%, 5 V ±
10% |
| |
|
| Power Dissipation *Notes
3 & 4 |
|
| Sleep (up to 512MB) |
300 µA(3.3V) 500 µA(5v) |
| Sleep (>512MB to <1.5GB) |
600 µA(3.3V) 800 µA(5v) |
| Sleep (1.5GB and higher) |
1 mA(3.3V) 1.2 mA
(5V) |
| Read |
50 mA(3.3V) 55 mA
(5V) |
| Write |
65 mA(3.3V) 70 mA
(5V) |
| |
|
| Specification |
Industrial
Grade |
| Environmental
Specifications |
|
| Temperature: |
|
| Operating Commerical |
10°C to 70°C |
| Operating Extended |
-40°C to 85°C |
| Non-Operating Commerical |
-25°C to 85°C |
| Non-Operating Extended |
-50°C to 100°C |
| |
|
| Humidity: |
|
| Operating |
8% to 95%,
non-condensing |
| Non-Operating |
8% to 95%,
non-condensing |
| Acoustic Noise (at 1 meter) |
0dB |
| |
|
| Vibration: |
|
| Operating |
15 G peak to peak
max. |
| Non-Operating |
15 G peak to peak
max. |
| |
|
| Shock: |
|
| Operating |
1,000 G max. |
| Non-Operating |
1,000 G max. |
| |
Altitude
(relative to sea level) |
|
| Operating/Non-Operating |
80,000 feet max. |
| |
| System
Reliability and Maintenance |
| MTBF (Mean Time Between
Failures) |
>3,000,000 hours |
| Preventive Maintenance |
None |
| Data Reliability |
<1
non-recoverable error in 1014 bits read |
| Endurance |
2,000,000 cycles
commercial
600,000 cycles extended |
| |
|
| Specification |
Industrial
Grade |
| Physical
Specifications |
|
| Length |
100.2mm ± 0.51mm |
| Width |
69.85mm ± 0.51mm |
| Thickness (Body) |
9.6mm ± 0.5mm |
Thickness
(Removable Edge) |
N/A |
| Weight |
160 g. max |
|
| Ordering
Information |
| Order Model # |
SD25B(I)-YY-201-80 |
| Where X: |
I = Extended Temp.
Blank: Commerical Temp. |
| YY: |
Mega Bytes |
| 32 |
32.11 MB |
| 64 |
64.2 MB |
| 128 |
128.4 MB |
| 256 |
256.9 MB |
| 512 |
512.5 MB |
| 1024 |
1024.9 MB |
| 2048 |
2048.9 MB |
| 4096 |
4097.8 MB |
|
|
Note
1: All values quoted are typical at ambient
temperature and nominal supply voltage unless otherwise stated.
Note 2:
All performance timing assumes the controller is in the default (i.e.,
fastest) mode.
Note 3:
Sleep mode currently is specified under the condition that all card inputs
are static CMOS levels and in a "Not Busy" operating state.
Note 4:
The currents specified show the bounds of programmability of the product.
Specifications are subject to change
without notice.
|
