Rugged
metal casing
* Commercial grade industrial 2.5-inch SATA flash disk
* Serial ATA 1.0a Specification Compliance
* ATAPI-5 compliance
* Available from 128MB up to 8GB.
* Operating temperature
:0
~ +70 deg C.
* Vibration:
15 G, compliance to MIL-STD-810F
* Shock:
1,500G, compliance to MIL-STD-810F |
Rugged
metal casing
* Industrial grade industrial 2.5-inch SATA flash disk
* Serial ATA 1.0a Specification Compliance
* ATAPI-5 compliance
* Available from 128MB up to 8GB
* Operating temperature :-40
~ +85 deg C.
* Vibration:
15 G, compliance to MIL-STD-810F
* Shock:
1,500G, compliance to MIL-STD-810F |

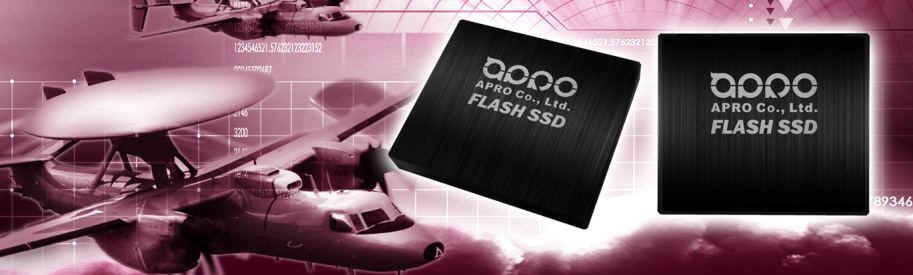

APRO Rugged 2.5 SATA
Flash Disk
Industrial or Commercial Grade
| Rugged
2.5" SATA Flash Disk |
Industrial
Wide
Operating Temp. Cards
(-40C ~+85C), 3
year warranty |
|
APRO Part No.
|
Capacity
|
Price
|
Data Transfer Mode
|
|
WR2FD128S-DISI-P
/ (or -U)
|
128MB
|
$129 |
At the end of the part number,
adding:
-P: PIO-4
-U:
UDMA-4 |
|
WR2FD256S-DISI-P
/ (or -U)
|
256MB
|
$139 |
|
WR2FD512S-DISI-P
/ (or -U)
|
512MB
|
$189 |
|
WR2FD01GS-DISI-P
/ (or -U)
|
1GB
|
$235 |
|
WR2FD02GS-DISI-P
/ (or -U)
|
2GB
|
$275 |
|
WR2FD04GS-DISI-P
/ (or -U)
|
4GB
|
$439 |
|
WR2FD08GS-DISI-P
/ (or -U)
|
8GB
|
$809 |
| Rugged
2.5" SATA Flash Disk |
Commercial
Operating Temp. Cards
(0C ~+70C), 1 year
warranty |
|
APRO Part No.
|
Capacity
|
Price
|
Data Transfer Mode
|
|
SR2FD128S-DCSC-P
/ (or -U)
|
128MB
|
$119 |
At the end of the part number,
adding:
-P: PIO-4
-U: UDMA-4 |
|
SR2FD256S-DCSC-P
/ (or -U)
|
256MB
|
$129 |
|
SR2FD512S-DCSC-P
/ (or -U)
|
512MB
|
$139 |
|
SR2FD01GS-DCSC-P
/ (or -U)
|
1GB
|
$189 |
|
SR2FD02GS-DCSC-P
/ (or -U)
|
2GB
|
$249 |
|
SR2FD04GS-DCSC-P
/ (or -U)
|
4GB
|
$399 |
|
SR2FD08GS-DCSC-P
/ (or -U)
|
8GB
|
$679 |
Features:
- Serial ATA 1.0a Specification Compliance
- Standard 2.5ˇ¨ HDD Form-Factor
- Disk capacity from 128MB up to 8GB
- Data transfer supports UDMA-4
- Performance up to 25.4MB/sec
- Operating temperature for Industrial Temp. Drives:-40
~ +85 deg C.
- Operating temperature for Commercial Temp. Drives:
0 ~ +70 deg C.
- 1 year warranty
Specifications:
- Compatibility : Serial ATA 1.0a Specification Compliance
- Flash Technology : NAND type SLC flash based
- Form-factor : 2.5ˇ¨ SATA Hard Disk Drive form-factor
- System Performance
・ Data
Transfer Mode: UMDA-4 Mode
・ Date
Transfer Rate: 66.6Mbyte/sec under UDMA-4 mode
・ Sequential
Read: 25.4MByte/sec (2Flash ICs / 2GB Flash Dish)
・ Sequential
Write: 10.5Mbyte/sec (2Flash ICs / 2GB Flash Dish)
・ Average
Access Time: 0.7ms (estimated)
- Environmental Specifications
・ Industrial
Temp. Drive: Operating
Temperature: -40 ~ +85 deg C. Non-operating
Temperature: -50 ~ 95 C
・
Commercial
Temp. Drive: Operating
Temperature: 0 ~ 70 deg C. Non-operating
Temperature: -20 C ~ 80 deg.C
・ Humidity:
5% ~ 95% non-condensing
・ Acoustic
Noise: 0dB
・ Vibration:
15 G, compliance to MIL-STD-810F
・ Shock:
1,500G, compliance to MIL-STD-810F
・ Altitude:
70,000 feet
- Power Consumption
・ Power
Requirement: +5V +- 10%
・ Reading
Mode: 196.5 mA (Max.)
・ Writing
Mode: 198.0 mA (Max.)
・ Sleeping
Mode: 160.2 mA (Max.)
- Reliability
・ MTBF :
> 1,000,000 hours
・ ECC :
Enhanced management per 4-bit ECC code
・ Endurance
: > 2,000,000 times; contributed by wear-leveling and advanced bad sector
management algorithms
・ Data
Reliability : < 1 non-recoverable error in 1014 bit read
・ Date
Retention : 10 years
- Physical Specification
・ Weight
(Max.) : 105g
・ Dimension
: 70.00 mm (W) * 99.92 mm (L) * 9.55 mm (H)
-Warranty : WR2SFDXXXS-DCSC series 3 year (Industrial Grade)
-Warranty : SR2SFDXXXS-DCSC series 1 year (Commercial Grade)
PRICE.
Please click here
for updated pricing information.
WARRANTY &
SUPPORT. Tech support
from manufacturer and PSI. 1 year warranty. For tech support
and/or RMA, please go to http://www.psism.com/support.htm.
TO
ORDER OR INQUIRE. Please
click here
to place an online order or send e-mail inquiry to sales@psism.com
or call (301) 572-2168. We accept Visa, MasterCard, Discover and American
Express as well as government and university POs. International orders
may be conditionally accepted. Please click here
to order or view our ordering information page.
